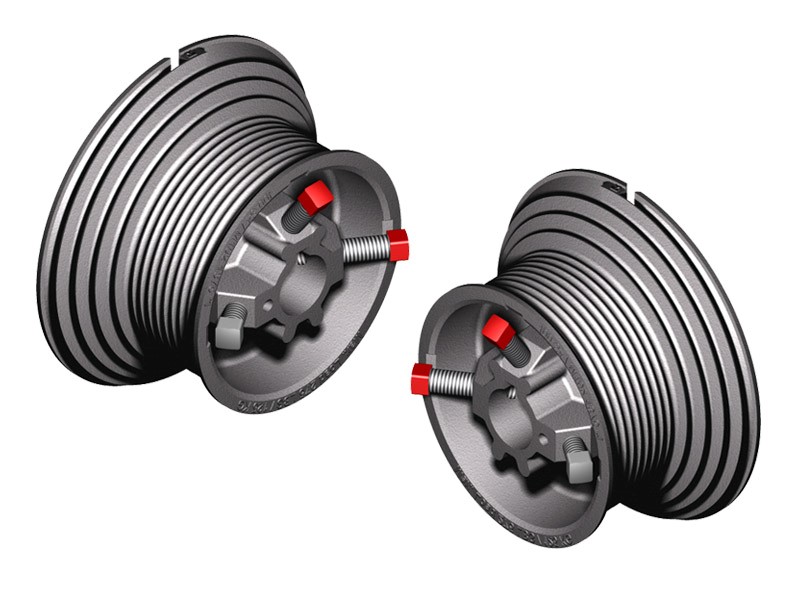

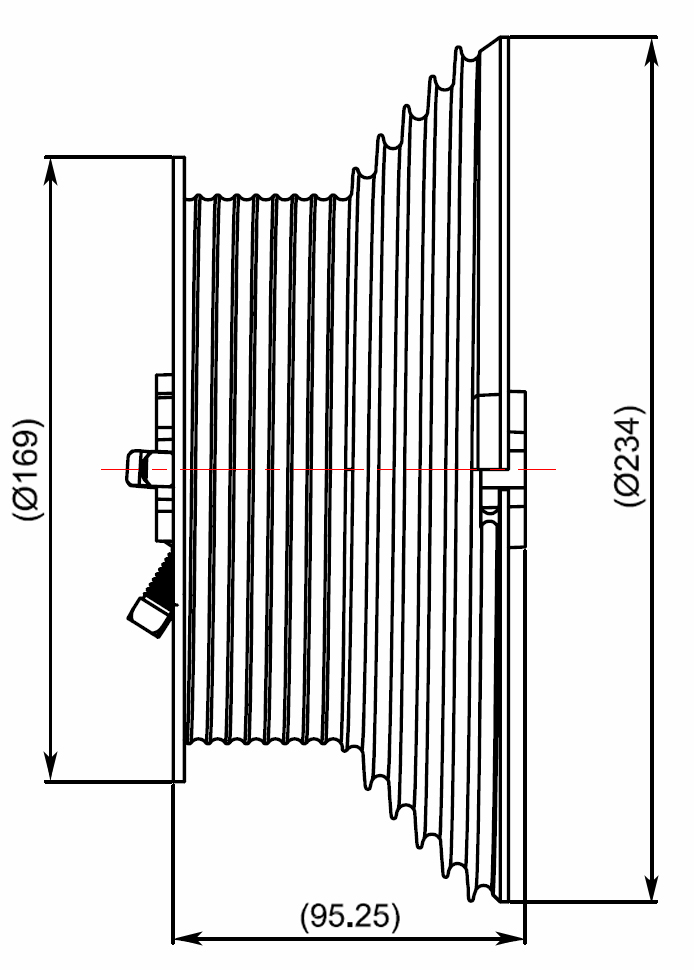

Is used for High lift doors. Supplied with 2 set screws for fixation on shaft. One cable set screw for cable fixation. For more information ask for a customer drawing. Minimum walloffset = 127mm. Max torque bolts 20Nm. Max. High lift: 2997 mm at 0.5 safety windings: 1967 mm at 2.0 safety windings Max. door height: Depending on opening height and high lift.
Max. door weight: 454 kg Max. cable diameter: 5mm. Shaft diameter: 1 inch (25.4mm). Marking: Red = Left, Black = Right.
| PRODUCT INFORMATION | |
| SHAFT DIAMETER(“/MM) | 1″(25,4) |
| MATERIAL | DIE-CAST ALUMINUM |
| INDUSTRIAL | YES |
| MAX. DOOR WEIGHT (KG) | 454 |
| OFFSET(MM) | 152 |
| SHAFT DIAMETER(“/MM) | 1″(25,4) |
| SYSTEM | HIGH LIFT |
| MAX HIGH LIFT(MM) | 2997 |
