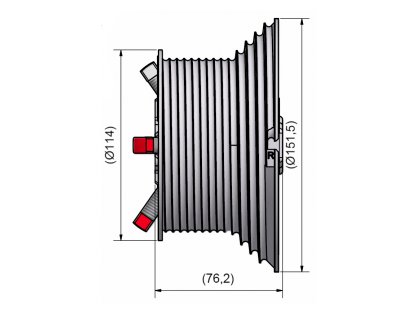

Is used for High lift doors. Supplied with 2 set screws for fixation on shaft. One cable set screw for cable fixation. For more information ask for a costumer drawing. Minimum walloffset: 86mm. Max torque bolts 20Nm. Max. High lift: 1376 mm at 0.5 safety windings: 740 mm at 2.0 safety windings Max. door height: Depending on opening height and high lift.
Max. door weight: 250 kg Max. cable diameter: 4mm. Shaft diameter: 1 inch (25.4mm). Marking: Red = Left, Black = Right.
| PRODUCT INFORMATION | |
| SHAFT DIAMETER(“/MM) | 1″(25,4) |
| MATERIAL | DIE-CAST ALUMINUM |
| INDUSTRIAL | YES |
| MAX. DOOR WEIGHT (KG) | 250 |
| OFFSET(MM) | 86 |
| SHAFT DIAMETER(“/MM) | 1″(25,4) |
| SYSTEM | HIGH LIFT |
| MAX HIGH LIFT(MM) | 1376 |
