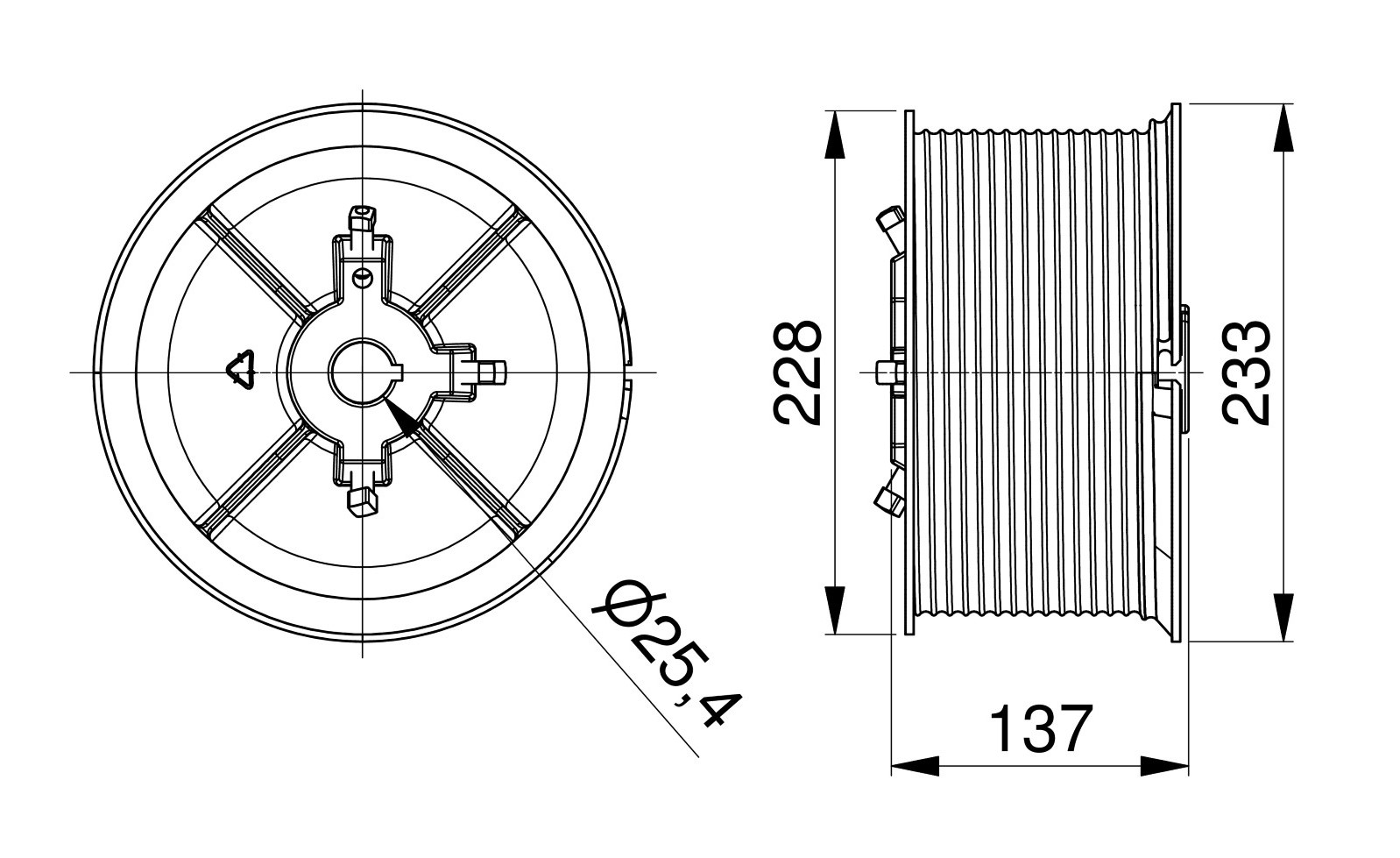

Is used for a standard lift door. Supplied with 2 set screws for fixation on shaft. Supplied with 1 cable set screw for cablefixation. For more information ask for a customer drawing.Minimum wall offset = 67 mm. Max torque bolts 20Nm. Max. door height: 3070 mm at 0.5 safety windings: 2558 mm at 2.0 safety windings. Max. torque on set screws 25Nm.
Max. door weight: 340 kg Max. cable diameter: 4 mm. Shaft diameter: 1 inch (25.4mm). Marking: Red = Left, Black = Right.
| PRODUCT INFORMATION | |
| SHAFT DIAMETER(“/MM) | 1″(25,4) |
| MATERIAL | DIE-CAST ALUMINUM |
| REZIDENTIAL | YES |
| MAX. DOOR WEIGHT (KG) | 340 |
| OFFSET(MM) | 67 |
| SHAFT DIAMETER(“/MM) | 1″(25,4) |
| SYSTEM | STANDARD LIFT |
