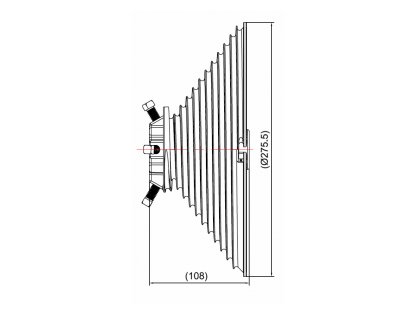

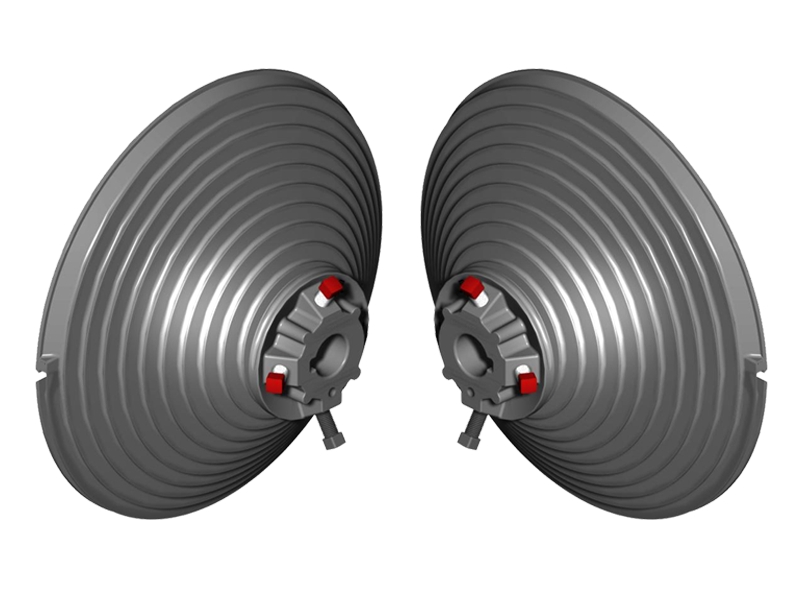

Is used for Vertical lift doors. Supplied with 2 set screws for fixation on shaft. One cable set screw for cable fixation. For more information ask for a customer drawing. Minimum walloffset = 152mm. Max torque bolts 20Nm. Material: Aluminium Max. door height: 5590 mm at 0.5 safety windings: 4403 mm at 2.0 safety windings Max. door weight: 518 kg Max. cable diameter: 5mm. Shaft diameter: 1 inch (25.4mm). Marking: Red = Left, Black = Right.
| PRODUCT INFORMATION | |
| SHAFT DIAMETER(“/MM) | 1″(25,4) |
| MATERIAL | DIE-CAST ALUMINUM |
| INDUSTRIAL | YES |
| MAX. DOOR WEIGHT (KG) | 518 |
| OFFSET(MM) | 152 |
| SHAFT DIAMETER(“/MM) | 1″(25,4) |
| SYSTEM | VERTICAL LIFT |
| MAX VERTICAL LIFT(MM) | 5590 |
